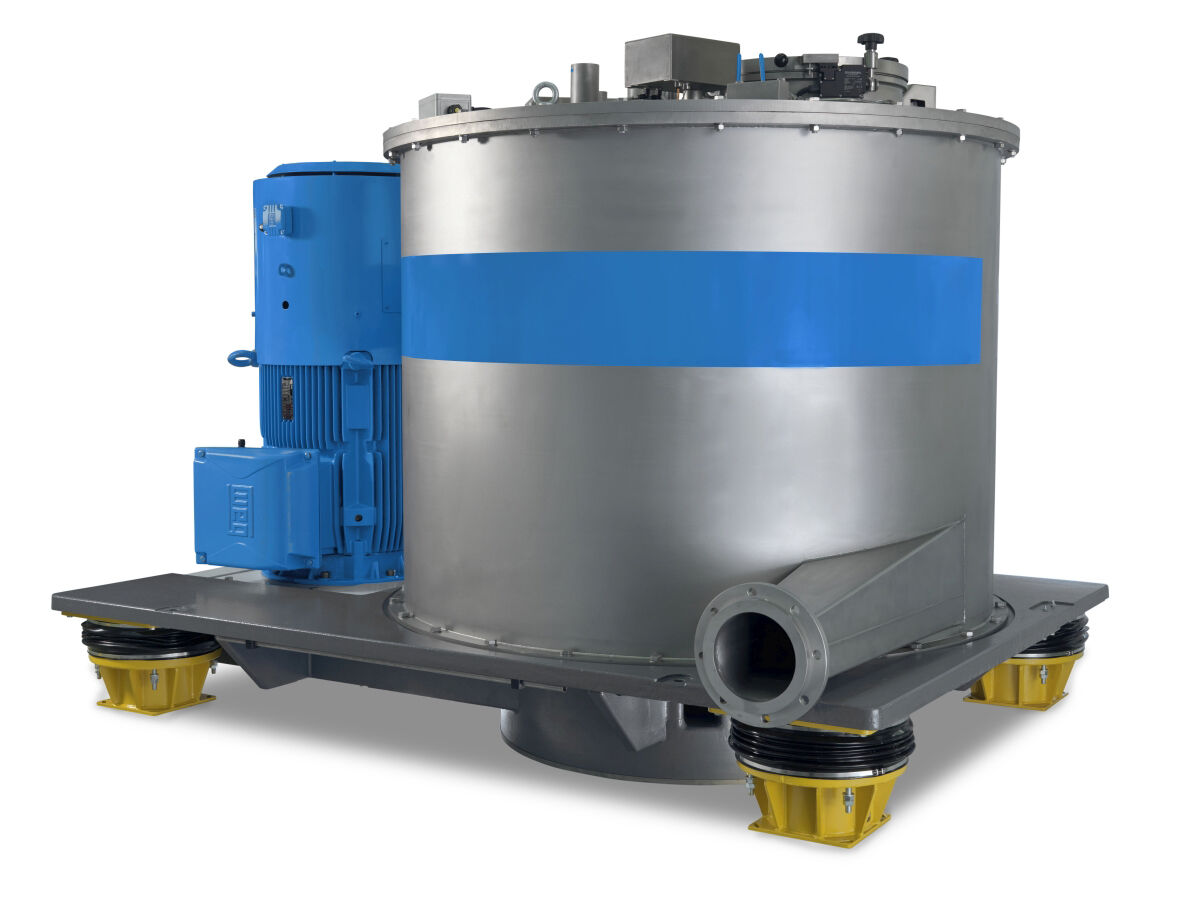

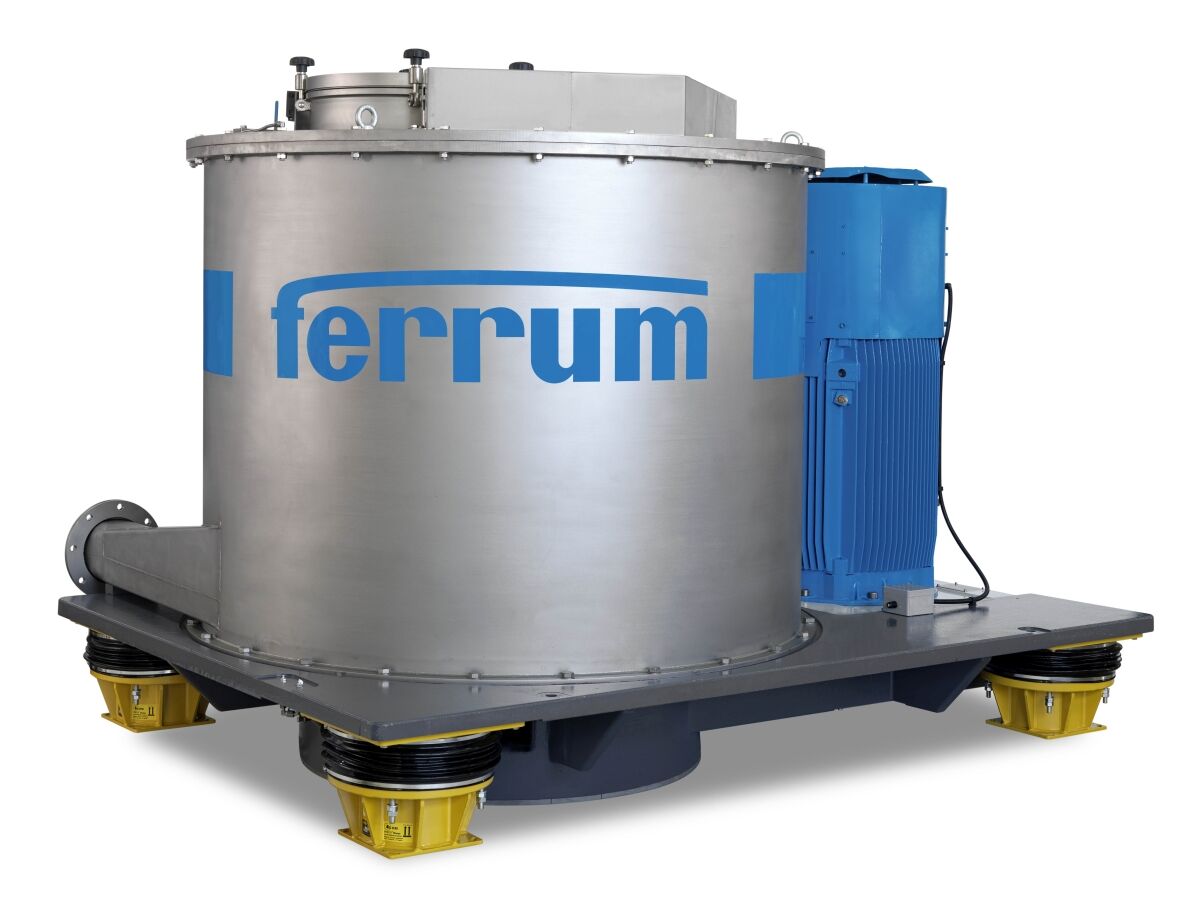

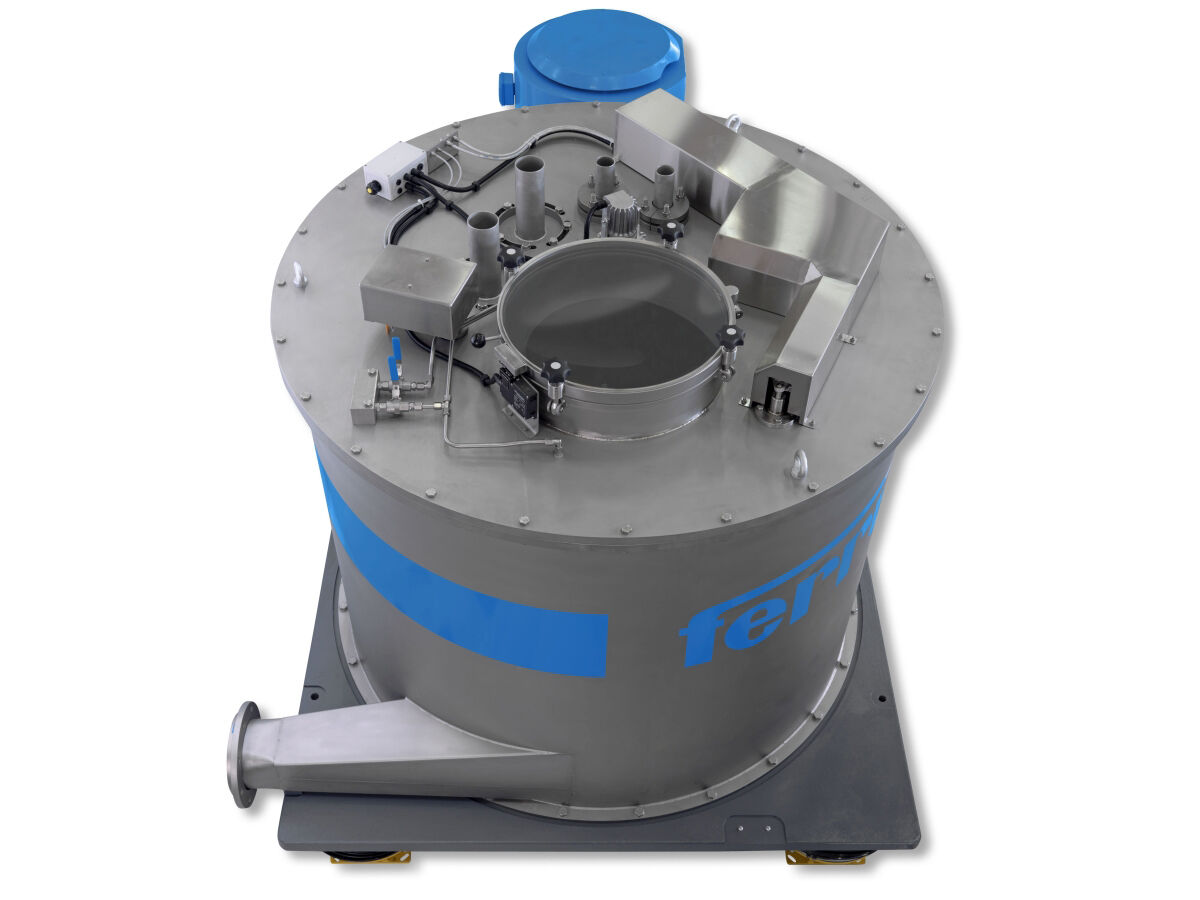

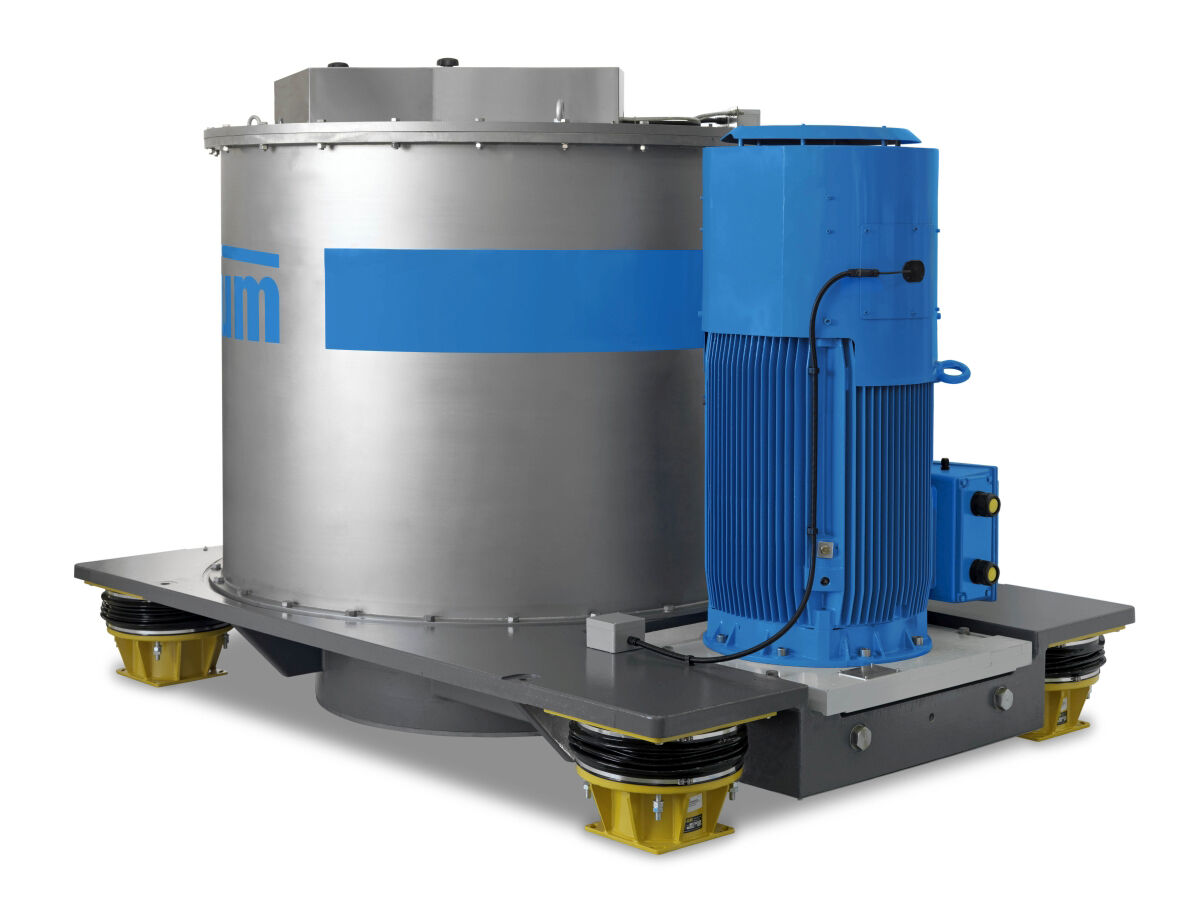

Vertical scraper centrifuges VGC

Continuous operation

The Vertical Scraper centrifuges VGC work discontinuously, the solids are discharged vertically downwards. The centrifuge is designed for highest possible availability and reliability. The many application areas include, amongst others, demanding continuous operation in the chemical and fine chemical industry.

Significant cost advantages are possible through low power consumption and energy regeneration, reduced wash liquid consumption, lower space requirements as well as cleaner operation in a totally enclosed centrifuge system.

Chemicals Fine chemicals Pharma

Features

Robust and reliable design for highest availability in permanent operation and even under extreme and irregular plant conditions
Minimum power consumption

Quiet and clean work environment
Best solid-liquid separation performance for high throughput as well as maximum purity and minimal residual moisture of the product

Technical data

VGC	1250/800	1250/1000	Unit
Basket diameter	1250	1250	[mm]
Basket height	800	986	[mm]
Filter surface	3.14	3.87	[m2]
Useful volume (100%)	501	617	[dm3]
Max. rotor speed	930	930	[min-1]
Max. G force	604	604	[g]
Centrifuge weight (without load)	6500	6700	[kg]

Dimensions
Length	2500	2500	[mm]
Width	1850	1850	[mm]
Height (closed, scraper knife vertical movement)	1800	2000	[mm]

VGC	1600/1000	1600/1250	Unit
Basket diameter	1600	1600	[mm]
Basket height	986	1250	[mm]
Filter surface	4.96	6.28	[m2]
Useful volume (100%)	1011	1282	[dm3]
Max. rotor speed	820	820	[min-1]
Max. G force	601	601	[g]
Centrifuge weight (without load)	10 400	10 900	[kg]
