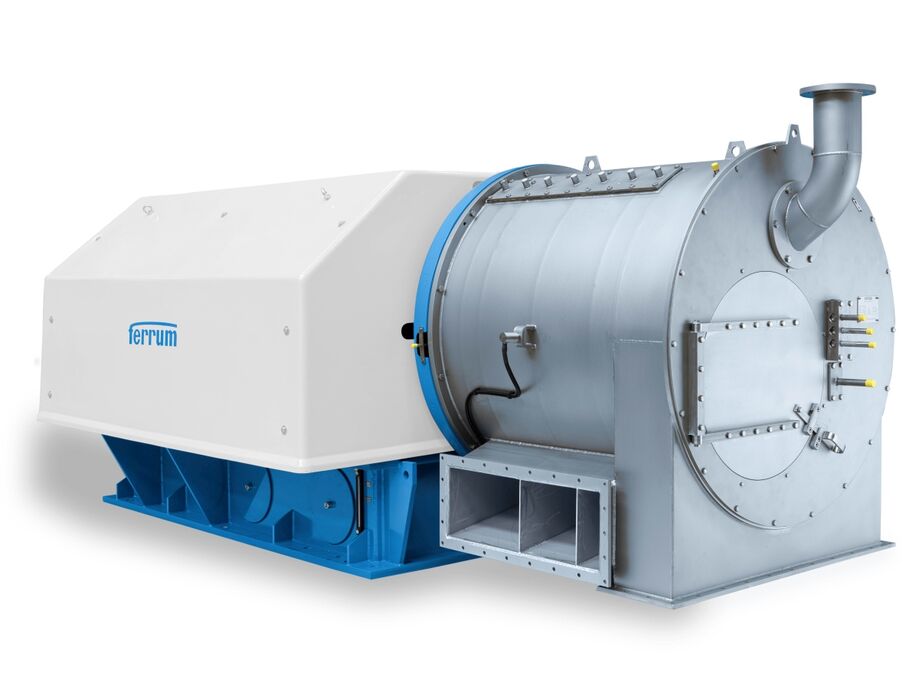

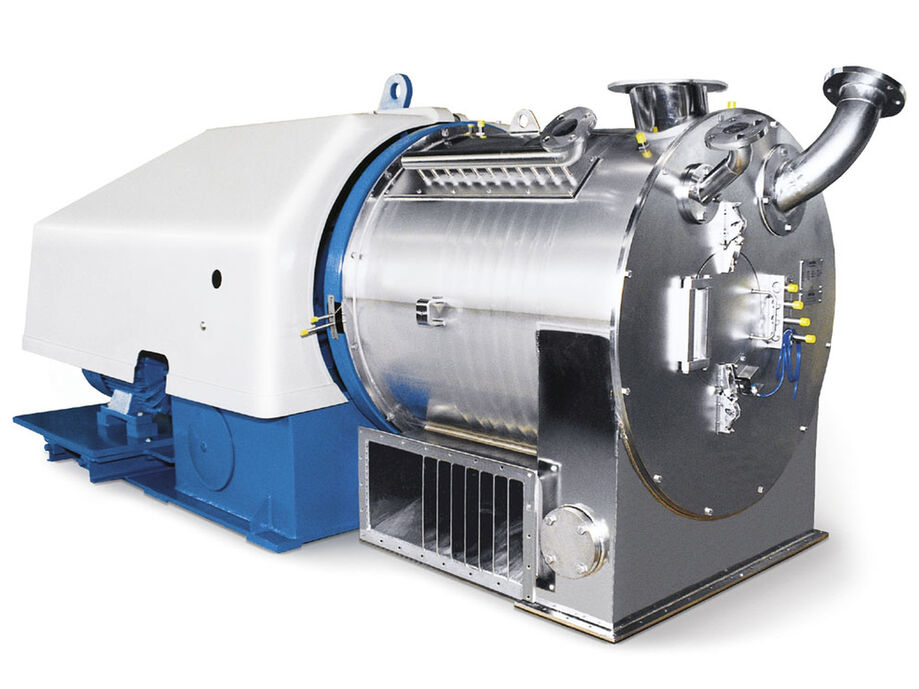

Pusher centrifuges P-60 to P-120

Proven

Based on the very successful Sulzer Escher Wyss design, Ferrum has improved and developed these pusher centrifuges consistently and according to the latest requirements and guidelines. Ferrum pusher centrifuges P-60 to P-120 guarantee best solid-liquid separation with high and constant product quality in the basic, agricultural and petrochemical industries.

Chemicals Fine chemicals Pharma Mineral Processing Petrochemicals Food Waste water Environmental

Features

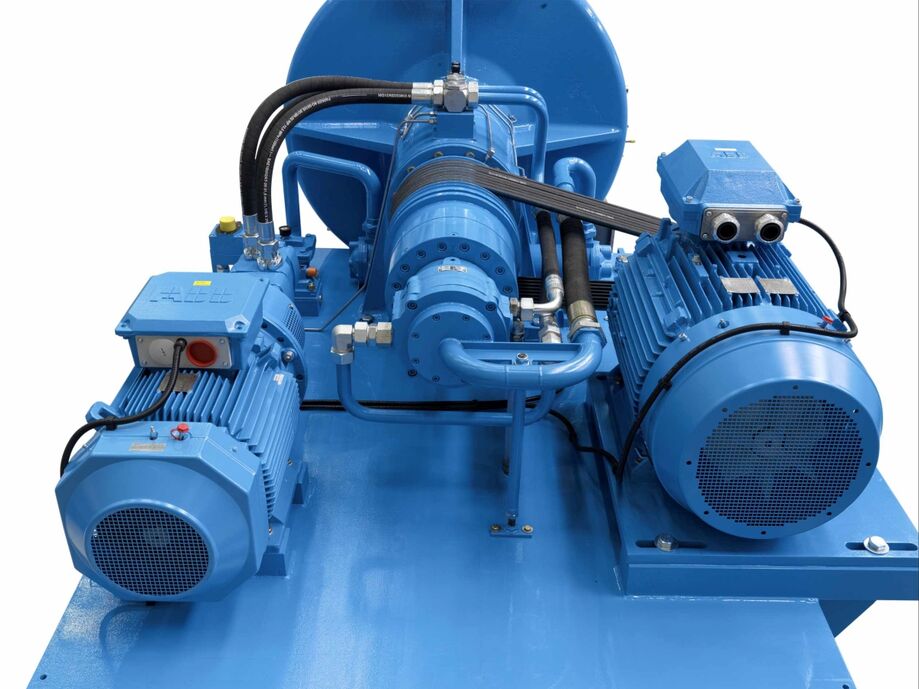

Hydraulic pusher drive for high pusher forces
Special designs, e.g. gas tight pusher centrifuge, explosion proof, etc.

Application specific optimisation possibilities: Inlet and discharge section, sieve segments, solids discharge, product washing, etc.

Technical data

	P-60	P-80	P-90	Unit
Basket diameter	630	800	900	[mm]
Number of stages	1 - 3	1 - 4	1 - 4	-
Max. rotor speed	1900	1500	1330	[min-1]
Max. number of strokes	80	80	80	[min-1]
Max. G force	1271	1006	890	[g]
El. power required with NaCl, rotation / stroke	40 / 20	72 / 32	93 / 42	[kW]
Operating weight without vibration isolation (with oil filling)	4900	8000	8500	[kg]
Operating weight with vibration isolation, without/with counterweight (with oil filling)	5700 / 9900	8900 / 14 200	-- / 14 700	[kg]
Maximum NaCl throughput (dependent on feed conditions)	30	50	60	[t/h]

Dimensions
Length	3200	3800	3800	[mm]
Width	1700	2000	2000	[mm]
Height without vibration isolation	1300	1550	1600	[mm]
Height with vibration isolation, without counterweight	1450	1800	-	[mm]
Height with vibration isolation and concrete counterweight	2000	2200	2250	[mm]
Height with vibration isolation and steel counterweight	1600	1850	1900	[mm]

	P-100	P-120	Unit
Basket diameter	1000	1200	[mm]
Number of stages	1 - 4	1 - 4	-
Max. rotor speed	1200	900	[min-1]
Max. number of strokes	80	76	[min-1]
Max. G force	805	543	[g]
El. power required with NaCl, rotation / stroke	113 / 53	150 / 60	[kW]
Operating weight without vibration isolation (with oil filling)	12 000	13 000	[kg]
Operating weight with vibration isolation, without/with counterweight (with oil filling)	-- / 19 200	-- / 20 200	[kg]
Maximum NaCl throughput (dependent on feed conditions)	70	85	[t/h]

Dimensions
Width	4350	4350	[mm]
Breite	2300	2300	[mm]
Height without vibration isolation	1900	1900	[mm]
Height with vibration isolation, without counterweight	-	-	[mm]
Height with vibration isolation and concrete counterweight	2550	2550	[mm]
Height with vibration isolation and steel counterweight	2200	2200	[mm]
